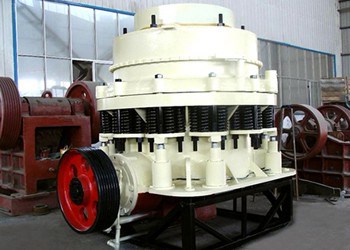

Cone Crusher

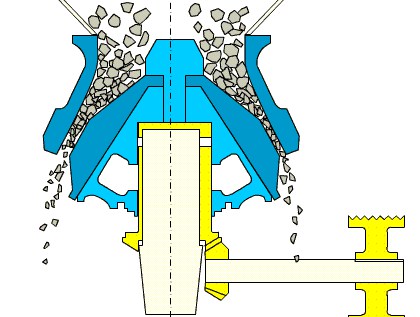

Cone crushers are also known as cone crushers. Hydraulic spring cone crusher adopts the latest technology developed in Germany and reached the world's advanced level.
The new cone crusher not only improves the production capacity and crushing efficiency, but also expands the range of applications.Cone crusher provides unparalleled performance in a variety of broken pieces, fine, super fine crushing operations.

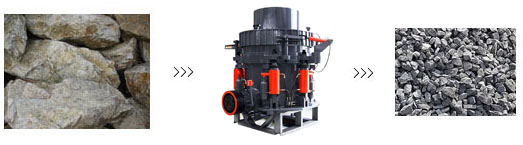

Cone crusher is widely used in metallurgy, building materials, mining, chemical and other industries to crush medium or above medium hardness materials like iron ore, copper ore, limestone, quartz, granite, sandstone and others.
1. High production capacity, stable performance;
2. Long life, low operating cost;
3. Easy maintenance.
4. Large crushing ratio, low loss, high efficiency;
5. Uniform particle size.
| Specification | Model | Diameter of large end of crushing cone (mm) |
Max.feeding size(mm) |
Width of discharge opening (mm) |
Processing capacity (t/h) |
Motor power (kw) |
Total weight （t） |
Dimensions (L×W×H) （mm） |
| Φ600 | PYB600 | 600 | 65 | 12-25 | 40 | 8P 30 | 5 | 2234×1370×1675 |
| PYD600 | 35 | 3-13 | 12-23 | 5.5 | 2234×1370×1675 | |||
| Φ900 | PYB900 | 900 | 115 | 15-50 | 50-90 | 8P 55 | 11.2 | 2692×1640×2350 |
| PYZ900 | 60 | 5-20 | 20-65 | 11.2 | 2692×1640×2350 | |||
| PYD900 | 50 | 3-13 | 15-50 | 11.3 | 2692×1640×2350 | |||
| Φ1200 | PYB1200 | 1200 | 145 | 20-50 | 110-168 | 8P 110 | 24.7 | 2790×1878×2844 |
| PYZ1200 | 100 | 8-25 | 42-135 | 25 | 2790×1878×2844 | |||
| PYD1200 | 50 | 3-15 | 18-105 | 25.3 | 2790×1878×2844 | |||
| Φ1750 | PYB1750 | 1750 | 215 | 25-50 | 180-360 | 8P 160 | 50.3 | 3910×2894×3809 |
| PYZ1750 | 185 | 10-30 | 80-210 | 50.3 | 3910×2894×3809 | |||
| PYD1750 | 85 | 5-13 | 60-180 | 50.2 | 3910×2894×3809 | |||
| Φ2200 | PYB2200 | 2200 | 300 | 30-60 | 420-700 | 8P 280-260 | 80 | 4622×3302×4470 |
| PYZ2200 | 230 | 10-30 | 130-410 | 80 | 4622×3302×4470 | |||
| PYD2200 | 100 | 5-15 | 80-200 | 81.4 | 4622×3302×4470 |
