Tertiary Crusher
Tertiary crusher is widely used, and it is the most effective, practical and reliable gravel machine. Tertiary crusher IS suitable for crushing all kinds of brittle materials, such as coal, gangue, coke, slag, fine sandstone, shale, loose limestone.
The crushing materials should with the compressive strength less than100Mpa and the surface of the water is no more than 15%. It is usually used to make grinding material, conduct fine crushing and medium crushing for the brittle materials like refractories, cement, quartz sand, grit, slag powder, copper ore, iron ore, gold ore, concrete aggregate, asphalt aggregate, etc.
Fote Machinery is a famous tertiary stone crusher manufacturer in China. The tertiary impact crusher in China has wide market and promising future. The fine rock crusher price in Fote is quite reasonable and the quality is guaranteed.
1. High efficiency, low noise, less dust and so on.
2. Crushing machine is stable.
3. Reliable operating performance
4. Simple structure, easy maintenance.
5. Long life expectancy.
|

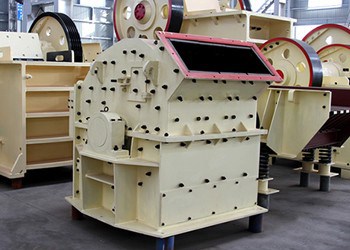

PXJ tertiary impact crusher
|
Rotorø×Width
(mm) |
|||||||
|
Specification
|
800×400
|
800×600
|
800×800
|
1010×1010
|
1200
×1200 |
1400
×1400 |
1600
×1600 |
1800
×1800 |
|
Feed opening size(mm)
|
400×185
|
500×250
|
550×300
|
1000×350
|
1200
×450 |
1500
×500 |
1600
×550 |
1800
×800 |
|
Feeding size (mm)
|
<120
|
<180
|
<180
|
<180
|
<180
|
<190
|
<190
|
<190
|
|
Discharging size (mm)
|
0-10
|
0-10
|
0-10
|
0-10
|
0-10
|
0-10
|
0-10
|
0-10
|
|
Adjustable range of discharge opening (mm)
|
5-50
|
5-50
|
5-50
|
5-50
|
5-50
|
5-50
|
5-50
|
5-50
|
|
Cement Clinker（t/h）
|
10-30
|
1040
|
20-45
|
25-55
|
35-90
|
50-150
|
85-210
|
125-270
|
|
Limestone（t/h）
|
18-45
|
23-55
|
28-65
|
35-75
|
45-110
|
50-150
|
95-260
|
140-310
|
|
Power（kw）
|
4P 37KW
|
4P 45KW
|
4P 45KW
|
4P 55KW
|
6P 110KW
|
6P 160KW
|
4P 250KW
|
4P 315KW
|
| Theoretical weight | 3.9 | 4.5 | 6 | 10.5 | 14.4 | 22 | 35 | 49.7 |
